Linx 8920

LINX 8920 Continuous ink jet printers
The Linx 8920 CIJ printer provides flexible coding with up to 6 lines of print across a wide range of
production line speeds, and with fewer maintenance interventions than other CIJ printers. With a
simple, touch screen interface, and unique on-screen system monitoring with extended service
intervals, the Linx 8920 is designed to make your coding life easier.

Easy to use for quick code setup and operation
» Store up to 50 named line settings – for quick retrieval at product changeovers; settings
can be transferred between printers with a USB flash drive.
» Large, icon-driven high-resolution touch screen, with at-a-glance production-rate visibility
» Automatic time adjustment option for daylight savings time
» Customisable top screen, one touch operation for common tasks, on-screen message prompts for faster, accurate code setup.
» Simple, one-touch, fluid cartridge refills during
printing – no mess, no tools, no mistakes
» Self-service with an on-screen Wizard which guides operators through the service module
change process – for a quick, engineer-free service.

Reliable coding for longer
» Extended service module change intervals up to 18,000hrs/24 months – code for longer without interventions
» Advanced System Monitoring – internal monitoring helps to avoid unscheduled stoppages between service module changes – reliable coding for longer
» Quick, clean startups every time – robust, completely sealed printhead, and Autoflush feature ensure continual reliable operation.
» IP55 environmental protection rating

Flexible coding with more printing capabilities
» Coding at faster line speeds as standard – up to 6.25m/s for one line of code.
» 6 line coding- Multiple operator languages (user selectable) with on-screen keyboards, secondary keyboard for multi-language printing.
» Carton coding option, up to 20mm high print.
» Code up to six lines of code, including Data Matrix and QR code
» Real-time output on screen – meet your OEE targets with the printer screensaver "On/Off target".

Printing capability

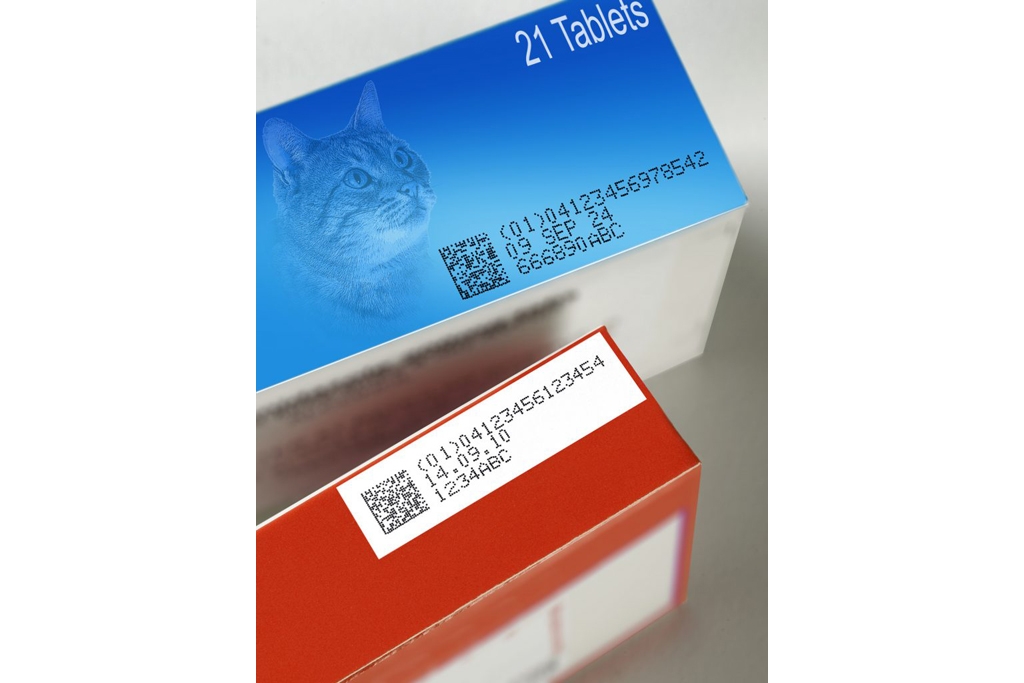

» Up to 6 lines of text, symbols, numbers, barcodes, Data Matrix and QR codes
» Character height from 1.8mm to 20mm
» Maximum speed for single line print is 6.25 m/s
» Carton coding option with character height up to 20mm
» Rotated character (tower) printing (option)
» Coding at faster line speeds as standard – up to 7.28m/s for one line of code

Programming features
» Screen with icons, drag-and-drop field positioning, and zoom function for longer messages
» Custom date and time editor to create different date formats as required
» ‘Production Schedule’ function, to print a sequence of messages automatically, with different triggering and repeat print options.
» USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers, and downloading of output and line stoppage logs.
» Message store of up to 1000
» Output and line stoppage logs
» Screen saver shows real-time on/off target indication
» One touch sequential number reset option from the printer screen, and reset using external trigger
» Customisable top screen for most frequently used features

Physical characteristics
» 10” colour touch screen
» Stainless steel enclosure
» IP55 (washdown) as standard
» 2m conduit as standard, with 4m and 6m options
» Weight 24kg
» No factory air required
» Ethernet port, with optional RS232 and Parallel I/O ports for easier integration with line equipment

Linx 8920

(0,23 MB)
